UV-LED Unit
Industrial curing processes can be complex, requiring lots of experience and know-how. UV LED curing technology provides a more consistent and reliable process without damaging or discolouring heat sensitive components.
Victory LED Curing system is based on the latest LED technology, which combines smart construction and high effeciency to ensure a stable and high quality curing process for different types of coating, printing, bonding application.
High Energy Output
Delivers up to 26 W/cm with adjustable energy levels, ensuring effective UV curing for various inks and applications.
Long Lifetime
Offers over 20,000 hours of reliable performance with optimized cooling to maintain low temperatures and extend LED lifespan.
Efficient Cooling System
Advanced water chilling technology keeps surface temperatures below 40°C, reducing heat damage to sensitive substrates and improving output quality.
Easy to install UV cold curing
Victory LED Curing system is smart system with “plug and play” design, easy to operation and suitable to install in existing machine.

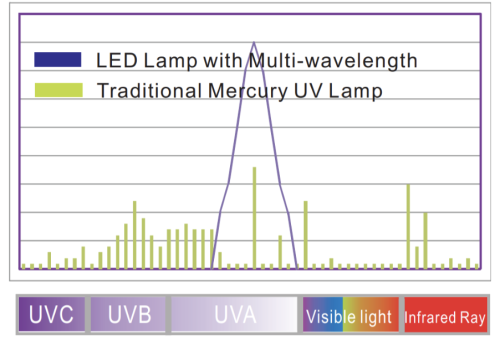

Compared with general mercury Lamps, normal LED can only provide a very narrow band. As shown in the diagram, the comparisons of the the output of a multiwavelength (365 nm-410 nm) LED lamp with a traditional mercury lamp.
At the same wavelength 365 nm, an LED lamp can output much more energy than a traditional mercury lamp. A LED lamp can provide more high energy output in UV-A range.
Victory curing systems use the latest LED technology on LED chip combination to reach high Joule Energy (DOSIS Energy), so it can easily cure UV ink in UVA range instead of single wavelength LED ink.
| Feature | Specification |
| Peak Wavelength Combination | 365-385-395-410nm |
| Peak Energy Output | Up to 26 W/cm |
| Array Width/Length | 50mm up to 3000mm |
| Lamp Dimensions | 60mm x 100mm x length |
| Power Control Range | 0-100% with instant on-off |
| Expected Working Life | > 20,000 Hours |
| Control System | Integrated PLC |
| Cooling System | Closed Loop Water with Automatic Flow Control |
| Certifications | CE, UL |
