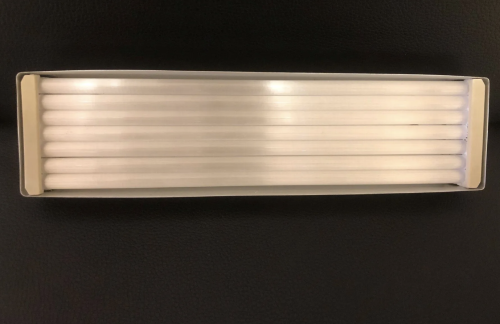

Quartz Modules
Victory IR quartz medium wave modules provide an efficient heat source for a variety of industrial processes, primarily those that entail thermoforming of plastics. The infrared elements built into quartz panels rapidly provide an even, controlled, heat source. The Victory infrared quartz medium wave module range comprises five modules to suit different fitments, and spans wattages from 150–1250W. There is thus a module to suit a wide range of industrial applications. However if you do not find the product you need in this datasheet, Victory’s technical team will be happy to discuss your exact requirement.
Product Features
Energy Efficiency
With low conventional losses, these lamps provide optimal performance while reducing any energy waste.
Versatile Options
Available in five standard ranges and a wide selection of power ratings, these lamps can be tailored to meet diverse application needs.
Customisable to Voltage Requirements
These lamps can be manufactured to suit most supply voltages, offering flexibility for a wide range of operational environments.
Efficient Lamps for Fast-Cycling Machines
These lamps are designed for fast cycling machines, offering quick heat-up and cool-down times to meet the demands of high-speed operations. Their even heat distribution ensures consistent performance across the entire surface, while the highly reflective aluminised internal surface maximises radiant efficiency. This combination of features makes them an excellent choice for applications requiring rapid heating and reliable, high-performance results. With high radiant efficiency, these lamps provide optimal energy usage, making them both effective and energy-efficient for demanding industrial processes.
Wattage Range
| Watts | 150 | 200 | 250 | 300 | 375 | 400 | 500 | 600 | 650 | 750 | 800 | 1000 | 1250 |
| HSQ | X | X | X | X | X | - | X | - | - | - | - | - | - |
| FSQ | X | - | X | X | - | X | X | X | X | X | - | X | - |
| SQE | - | - | - | - | - | X | X | X | - | X | - | X | - |
| LQE | - | - | - | - | - | - | - | - | - | X | X | X | X |
| QSQ | - | X | X | - | - | - | - | - | - | - | - | - | - |
These wattages are common configurations, others are available upon request. Please contact us if you need a wattage that is not shown.
Specifications
Voltages: 110-120V, 220-240V, 480V
