Gold
gold_ir_v1_2_en.pdf
Victory’s Gold IR lamps have excellent glare reduction thanks to a special method of vacuum deposition developed by Victory which is used to deposit the gold coating. Victoryʼs manufacturing process uses state-of-the-art vacuum deposition technology that enables a dichroic film to be coated onto tubular surfaces.
Product Features
Superior Coating Precision
The multi-layer coating features tightly controlled film thickness, offering a level of accuracy unmatched by competitive dip-coating processes.
Consistent Quality and Appearance
These lamps ensure uniform color across their entire length and maintain consistency from batch to batch for reliable visual performance.
Durability and Performance
With reduced pinholes and improved stability, the advanced coating delivers long-lasting reliability throughout the lamp's lifespan.
We have enabled tubular surfaces, previously unsuitable for coating, to have a glare-reducing coating. The process is also suitable for ruby lamps in instances where they might be considered ‘too red’, or simply as an upgrade from less effective dip-coated glare reduction lamps.
Another important benefit is flexibility to tailor the transmission to suit different applications, modifications in spectral output, colour of the transmitted light, and amount of visible light are all brought within our control.
The list below shows details of Victory's most popular gold lamps. Our Sales Team will be able to provide additional information and assist you in finding the correct lamp for your needs:
| Code | Watts (W) | Volts (V) | Length (mm) | Cap | Material |
| 64121070 | 1000 | 120 | 353 | SK15 | GOLD |
| 64241372 | 1300 | 240 | 254 | R7s | GOLD |
| 64241571 | 1500 | 240 | 353 | SK15 | GOLD |
| 64242070 | 2000 | 240 | 353 | SK15 | GOLD |

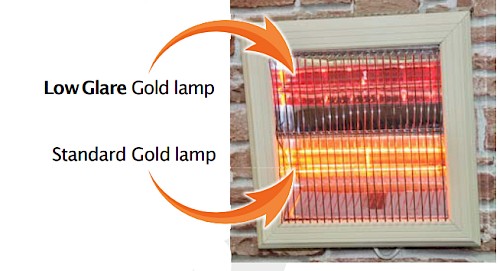

| 6424157F | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424157G | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424157H | 1500 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424207C | 2000 | 240 | 353 | SK15 | LOW GLARE GOLD |
| 6424207D | 2000 | 240 | 353 | SK15 | LOW GLARE GOLD |
