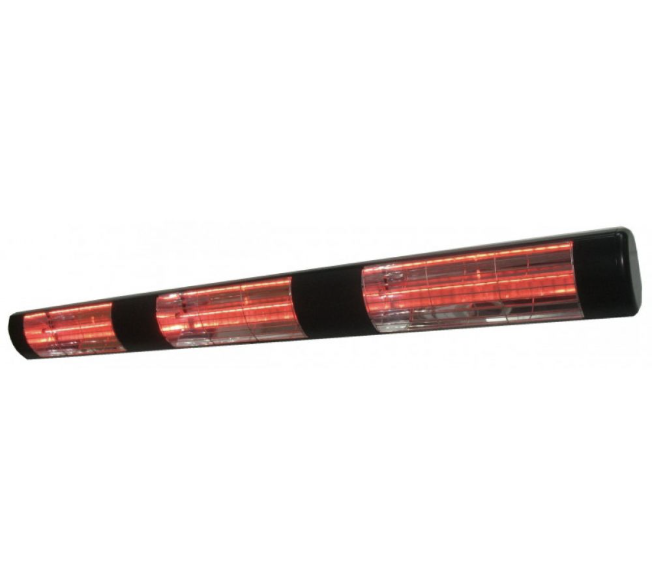

HLWA Short-Wave Patio Heater HLWA30
victory-datasheet-hlwa_new_1.pdf
With recent increases in energy costs, shortwave infrared is an effective heat source, which is more controllable than traditional heating systems along with the benefit of lower running costs. To find out more information on suitable controllers for your heater contact our sales team who will be happy to discuss further.
Product Features
Dual Voltage Compatibility
Offered in 110/120V and 220/240V versions to suit various power systems.
Rigorous Testing
Complies with ANSI/UL499 and CAN CSA C22.2 standards for safety and reliability.
IP55 & IP66 Ratings
Weather-resistant, ideal for outdoor use in all conditions.
With a range of styles, lamp options and wattages available there is an HLWA model to suit every application. With a long lamp life, low running costs and minimal energy wastage, they offer one of the most cost effective heating solutions on the market. Thanks to its slim design, the HLWA can be wall or ceiling mounted, with the 1 – 2kW versions also available for parasol mounting, using the appropriate fixing arms that are available directly from Victory.
HLWA30
Wall Mounted
| H (ft) | X (ft) | Y (ft) | Z (ft) | Area (ft sq.) |
| 6'6" | 11'2" | 7'10" | 14'9" | 102 |
| 8'2" | 13'9" | 9'10" | 19' | 161 |
Overhead Mounted
| H (ft) | X (ft) | Y (ft) | Z (ft) | Area (ft sq.) |
| 6'6" | 14'1" | 8'2" | - | 115 |
| 8'2" | 17' | 11'6" | - | 196 |
Wall Mounted
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 3.4 | 2.4 | 4.5 | 9.48 |
| 2.5 | 4.2 | 3 | 5.8 | 15 |
Overhead Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 4.3 | 2.5 | - | 10.7 |
| 2.5 | 5.2 | 3.5 | - | 18.2 |
