HLW Comfort Heater
hlw-v1_3-en.pdf
The HLW heater is IP55 rated and is available from 1kW to 4.5kW. Dependent on the model required the heaters are available in a range of colours, these include black, white and in 2022 we also launched the 1.5 and 3kW versions in Anthracite Grey. This colour variation has proved very popular since introduction, with the heaters suiting the current fashion of grey patio furniture and fixings.
Product Features
Installation and Coverage
Suitable for wall, ceiling, and parasol mounting, with large area coverage, and available in multiple power options from 1kW to 4.5kW to meet diverse heating needs.
Durable and Weatherproof Design
Built with an IP55 rating for outdoor use, featuring a long lamp life of at least 7,000 hours, and easy maintenance for reliable performance in various environments.
Customisable Options
Available in a choice of colors (Black, White, Anthracite Grey), with multiple lamp types including Standard NDA, Gold, or Low Glare Gold, and compatible with mounting and control accessories for tailored solutions.

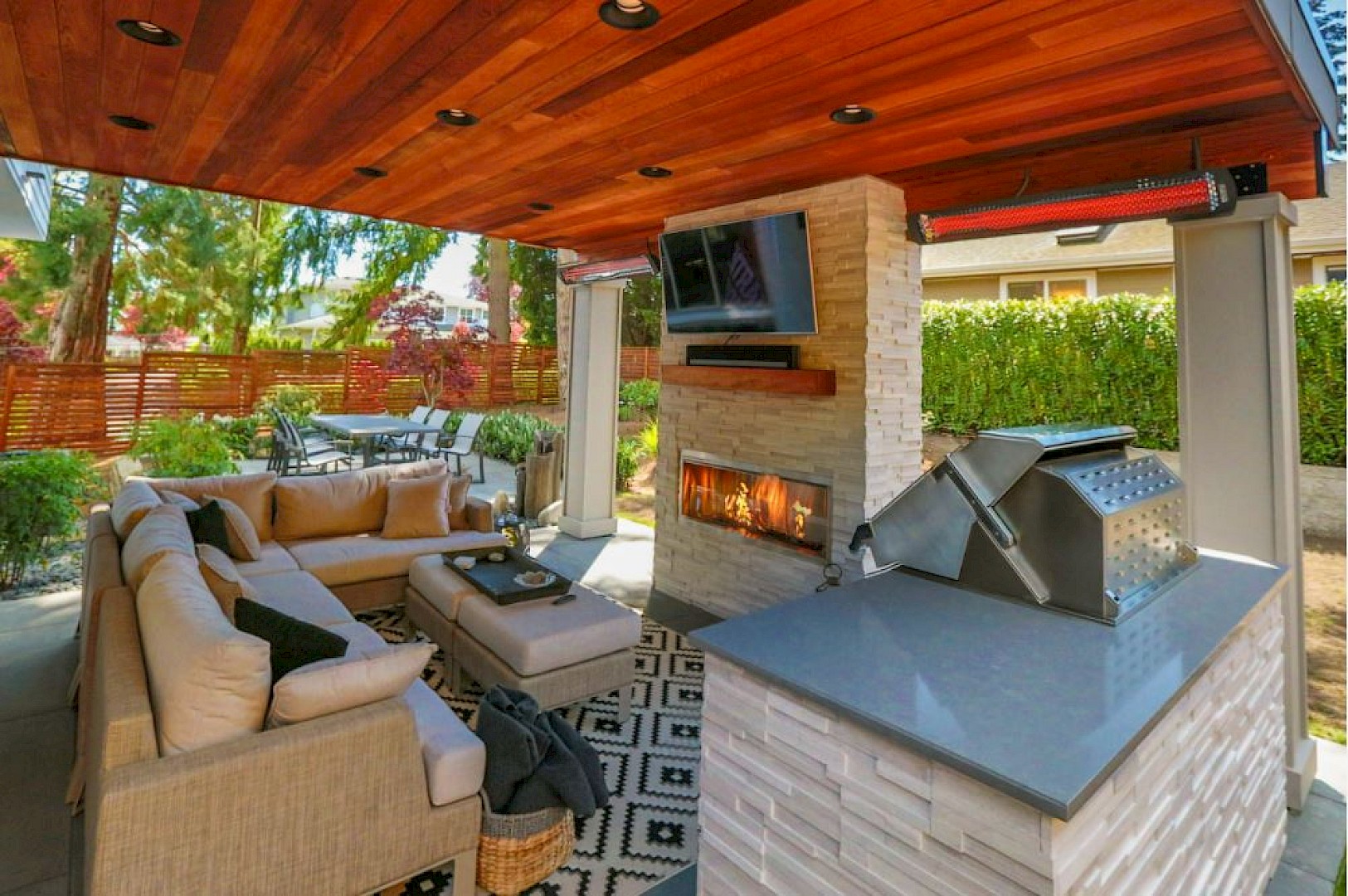

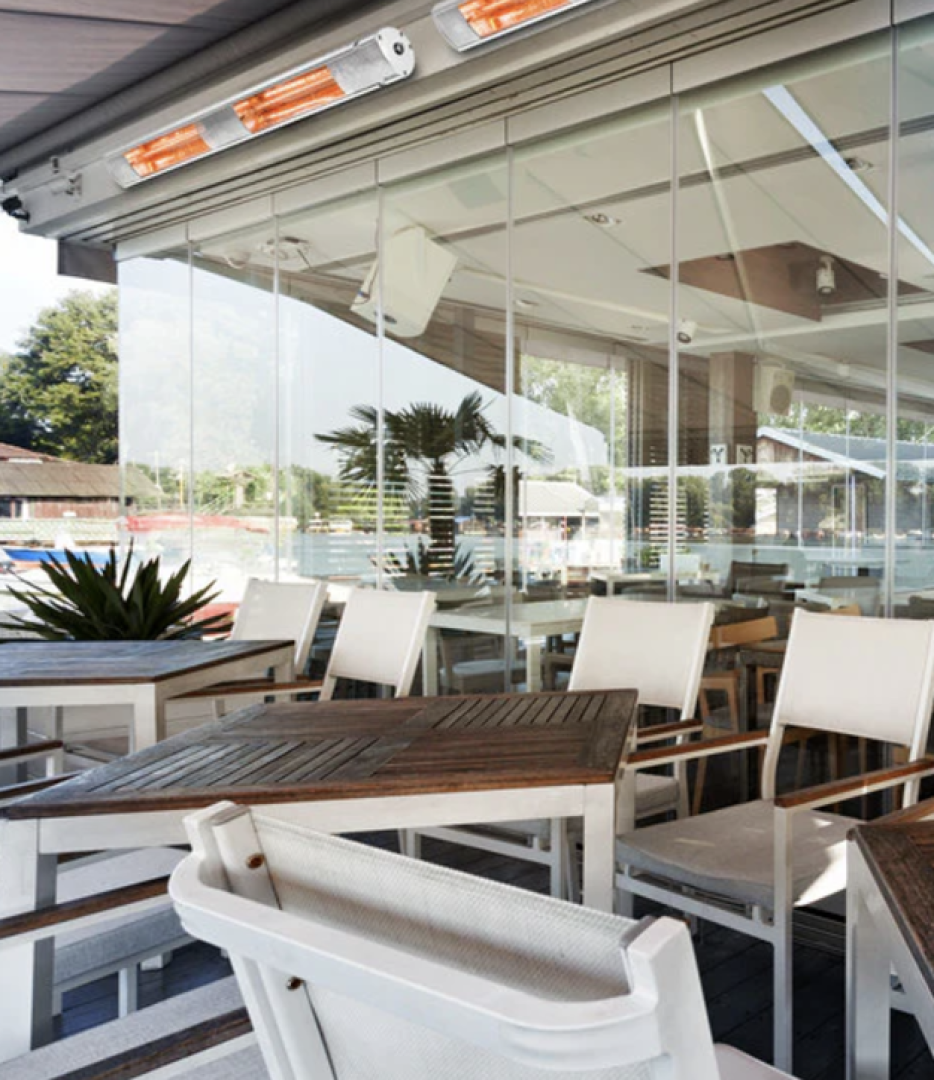

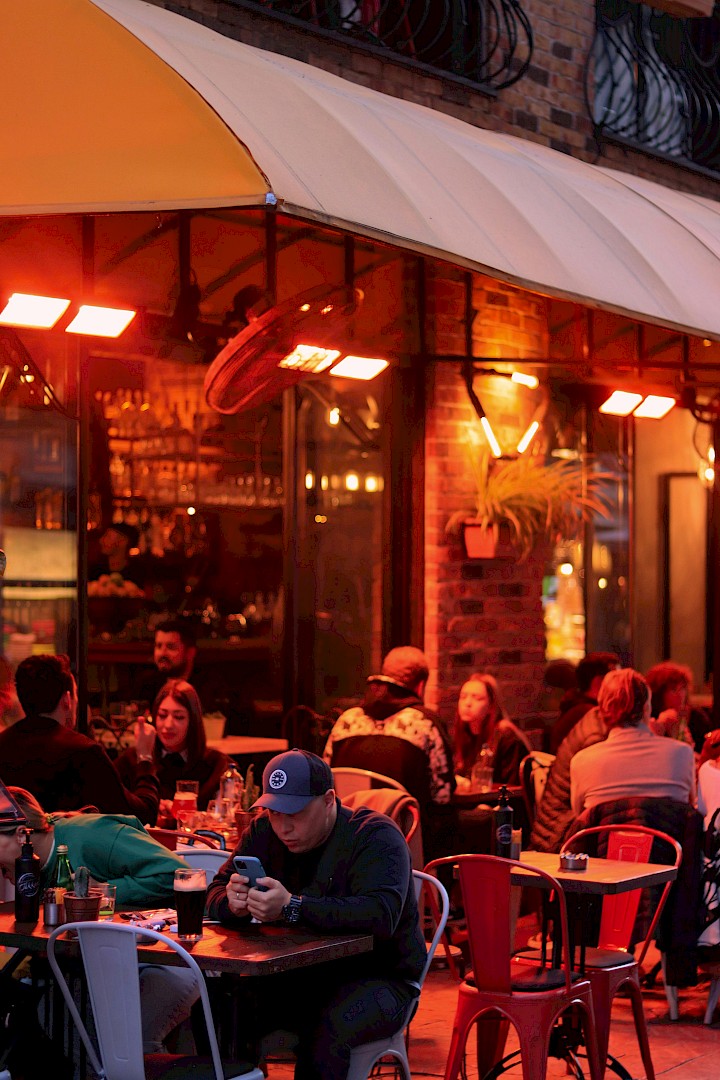

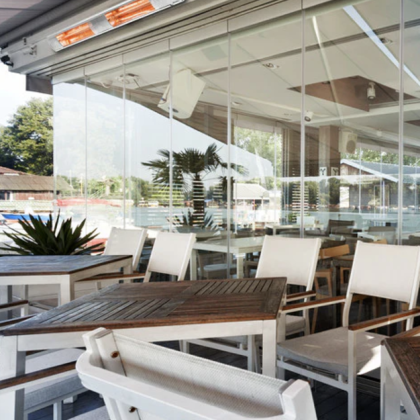

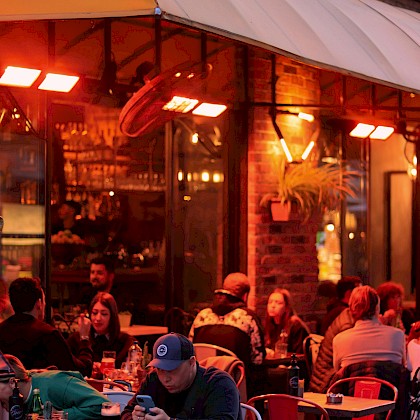

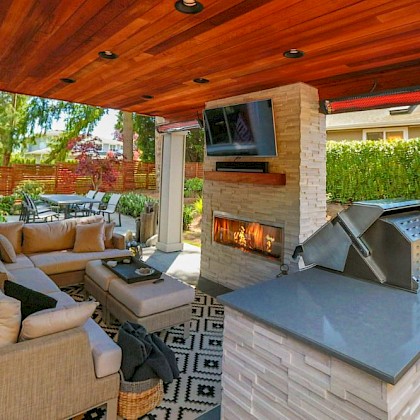

These outdoor patio heaters are also ideal as gazebo heaters or marquee heaters. They use shortwave infrared to produce the heat required. Shortwave IR is an ideal solution for patio heaters, as it provides the heat required without being affected by breezes. This is because infrared is not a convection heating system like gas heaters. Infrared waves travel through the air to solid objects such as furniture and people. These waves are then absorbed, creating the feeling of heat. The HLW’s are one of the most popular infrared heaters in the UK and around the world.
With recent increases in energy costs shortwave infrared is an effective heat source, which is more controllable than traditional heating systems along with the benefit of lower running costs. To find out more information on suitable controllers for your heater contact our sales team who will be happy to discuss further. Thanks to its slim design, the HLW can be wall or ceiling mounted, with the 1 – 2kW versions also available for parasol mounting, using the appropriate fixing arms that are available directly from Victory.
The HLW Range
| Code | Colour | Watts | Lamp | Lamp Life (h) | Weight (KG) | IP Rating |
|---|---|---|---|---|---|---|
| HLW10 | White | 1000 | NDA | 7000 | 1.7 | IP55 |
| HLW10B | Black | 1000 | NDA | 7000 | 1.7 | IP55 |
| HLW15 | White | 1500 | NDA | 7000 | 1.7 | IP55 |
| HLW15B | Black | 1500 | NDA | 7000 | 1.7 | IP55 |
| HLW15AG | Anthracite Grey | 1500 | NDA | 7000 | 1.7 | IP55 |
| HLW15BG | Black | 1500 | Gold | 7000 | 1.7 | IP55 |
| HLW15G | White | 1500 | Gold | 7000 | 1.7 | IP55 |
| HLW20BG | Black | 2000 | Gold | 7000 | 1.7 | IP55 |
| HLW30BG | Black | 3000 | Gold | 5000 | 3.2 | IP55 |
| HLW30AGG | Anthracite Grey | 3000 | Gold | 5000 | 3.2 | IP55 |
| HLW45BG | Black | 4500 | Gold | 5000 | 4.5 | IP55 |
Contact Us Today
HLW15 IP66 Testing
The video below shows Independent ingress testing of HLW15 heat lamp, illustrating IP66 capability.
HLW10, HLW15 & HLW20: Coverage Area
Wall Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 2.3 | 2.4 | 4 | 7.6 |
| 2.5 | 3 | 3 | 5.2 | 12.3 |
Overhead Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 3.6 | 2.5 | - | 9 |
| 2.5 | 4.8 | 3.5 | - | 16.8 |
Supplied With
- 3m mains cable
- Wall bracket
- Parasol clamp
(Optional)
- Low glare option
- Folding parasol arm
HLW30: Coverage Area
Wall Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 3.4 | 2.4 | 4.5 | 9.48 |
| 2.5 | 4.2 | 3 | 5.8 | 15 |
Overhead Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 4.3 | 2.5 | - | 10.7 |
| 2.5 | 5.2 | 3.5 | - | 18.2 |
HLW45: Coverage Area
Wall Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 4.3 | 2.4 | 5 | 11.16 |
| 2.5 | 4.8 | 3 | 6.4 | 16.8 |
Overhead Mounted:
| H (metres) | X (metres) | Y (metres) | Z (metres) | Area (metres sq.) |
| 2 | 4.8 | 2.5 | - | 12 |
| 2.5 | 5.6 | 3.5 | - | 19.6 |
HLW Infrared Heater: How to Replace A Lamp
The video below shows how to replace a lamp in the HLW10 / HLW15 / HLW20 heater.
Replacement Lamps
| Heater Model | HLW10 | HLW15 | HLW15B | HLW15S | HLW15G | HLW15BG | HLW20BG | HLW30BG | HLW45BG |
|---|---|---|---|---|---|---|---|---|---|
| Lamp Code | 64241001 | 64241525 | 64241525 | 64241525 | 64231570 | 64231570 | 64242073 | 64231571 | Call Assistance |
If your heater model is not listed above, please contact our Sales Team who will be able to assist in finding the correct lamp.
