HLQ Infrared Heater
hlq_v1_2_en.pdf
HLQ Pro heaters provide short wave high-energy instant infrared heat in a wide variety of indoor situations as well as locations such as under waterproof canopies and roofs.
Product Features
Eco-Friendly and Efficient Heating
Offers low energy consumption with significantly reduced emissions compared to gas heaters, providing an environmentally responsible solution for industrial and commercial zone heating.
Customisable and Versatile Options
Available in a 110V version and portable units upon request, ensuring adaptability to various operational needs and settings.
Comprehensive Support and Affordability
Backed by full technical support, design, and planning advice, all at competitive prices to deliver excellent value and customer satisfaction
HLQ Pro heaters provide short wave high-energy instant infrared heat in a wide variety of indoor situations as well as locations such as under waterproof canopies and roofs. With models from 1.5kW to 18kW they offer the instant answer to many zone or localised heating solutions.
The units can be wall mounted or ceiling suspended and are available in single and three phase versions. They are manufactured from aluminium, finished in a black powder coat finish. Guards are included as standard with all models. They are fitted with high efficiency gold short wave infrared lamps. A low glare gold lamp option is available on request. These heaters provide an ideal heating solution for industrial locations, such as warehouses, as well as religious buildings, shops plus arenas & stadiums etc.
Made to Order:
| Code | No. Lamps | Watts | Volts | Supply | Weight |
| HLQ15G | 1 | 1500 | 220-240 | Single Phase | 3.5 |
| HLQ20G | 1 | 2000 | 220-240 | Single Phase | 3.5 |
| HLQT30G | 2 | 3000 | 220-240 | Single Phase | 5 |
| HLQT40G | 2 | 4000 | 220-240 | Single Phase | 5 |
| HLQT45G | 3 | 4500 | 220-240 | Single Phase | - |
| HLQT60G | 3 | 6000 | 220-240 | Single Phase | - |
| HLQ90G | 6 | 9000 | 380-415 | 3-Phase only | 13.6 |
| HLQ120G | 6 | 12000 | 380-415 | 3-Phase only | 13.6 |
| HLQ135G | 9 | 13500 | 380-415 | 3-Phase only | 20.4 |
| HLQ180G | 9 | 18000 | 380-415 | 3-Phase only | 20.4 |
Supplied With:
- All single phase* units are pre-wired with mains cable
- Wall bracket
- *3-phase units are to be wired by installer
(Optional)
- Low glare option
- Overhead mounting kit
HLQ15G & HLQ20G (1 Lamp Versions)

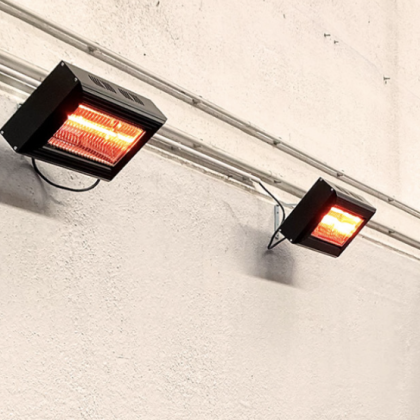

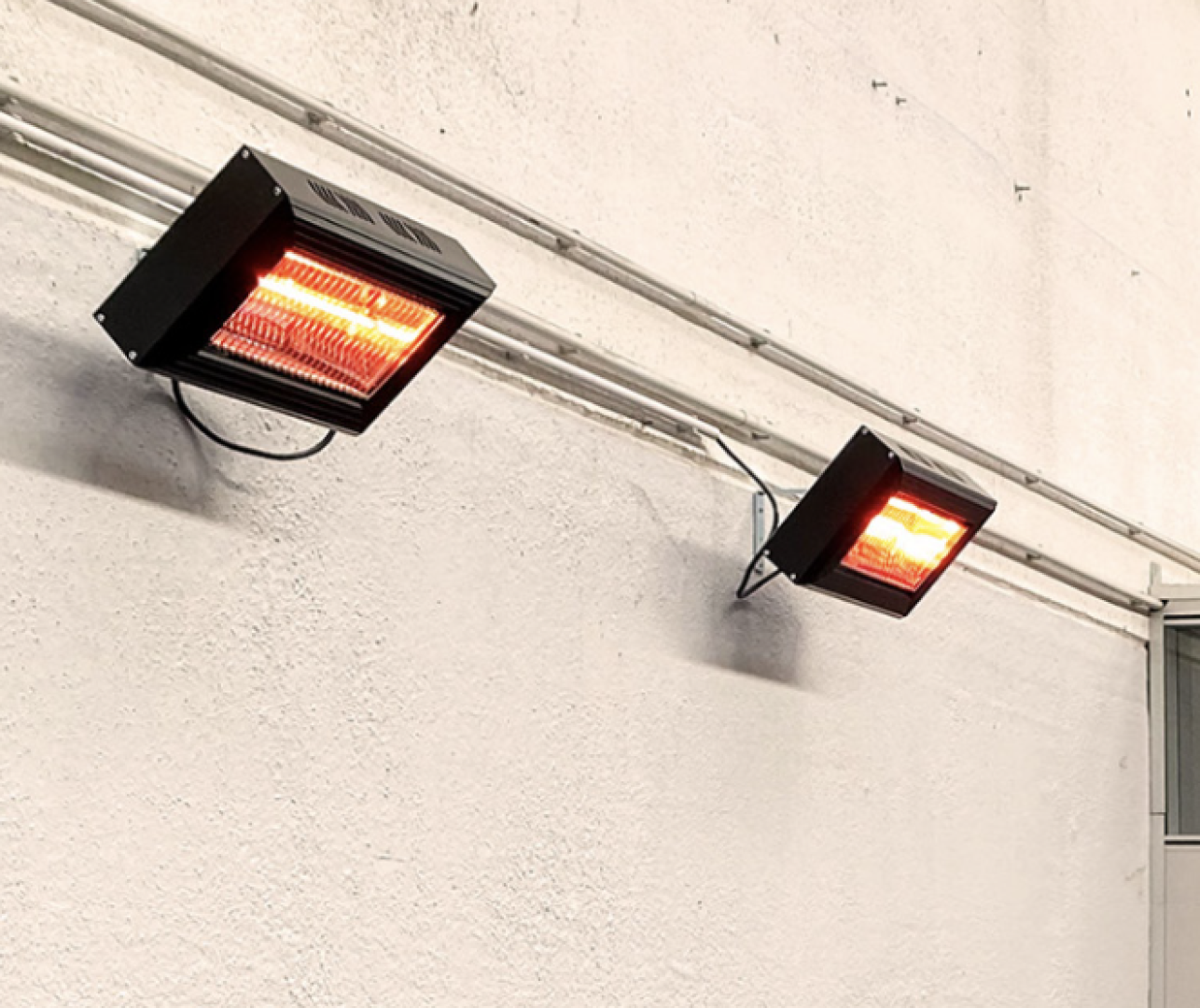

Wall Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 2.5 | 3.2 | 2.6 | 6.0 | 12.0 |

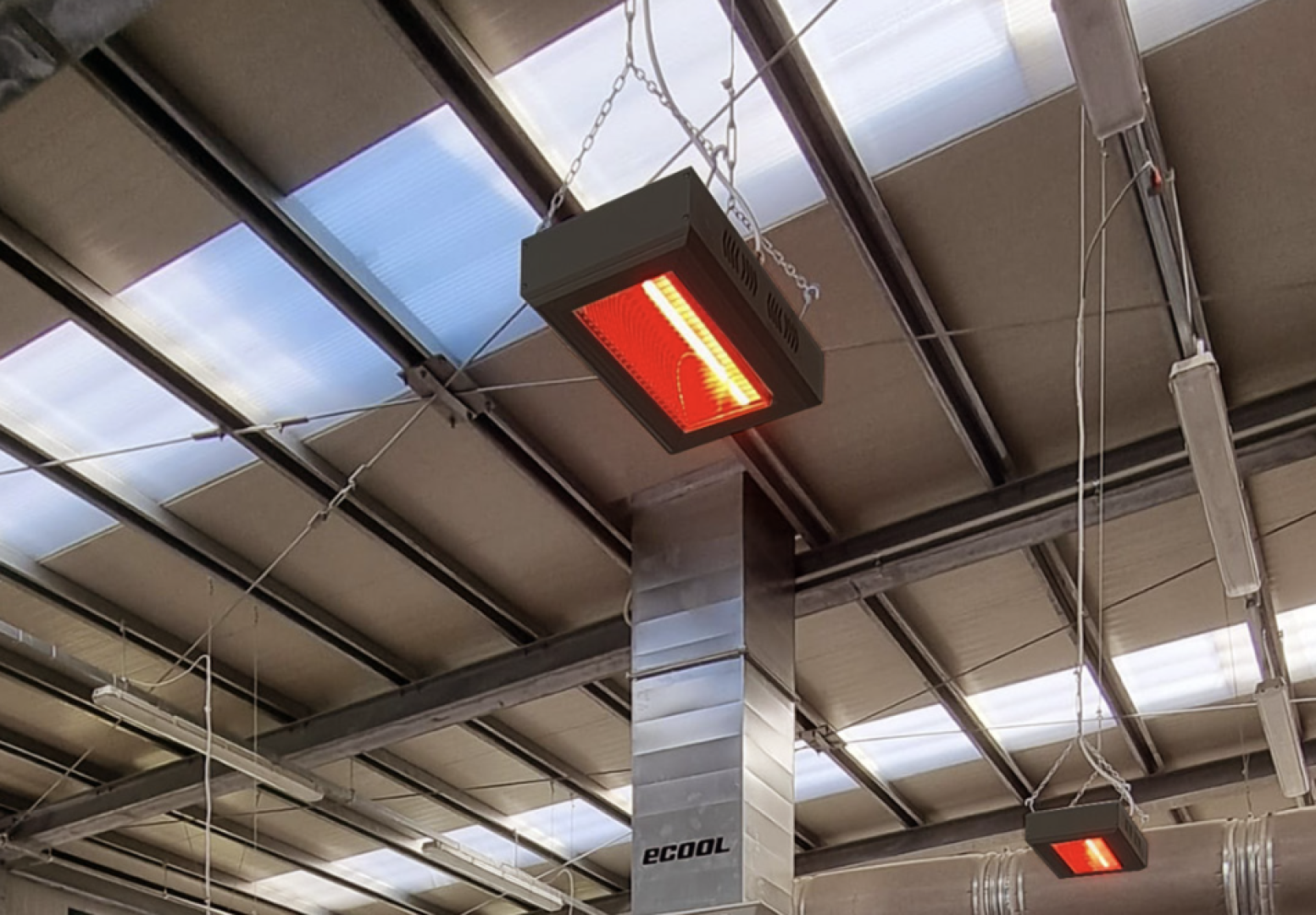

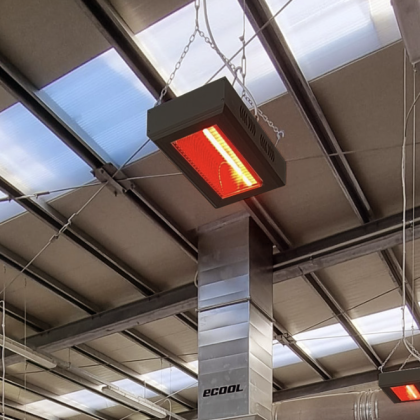

Overhead Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 3.0 | 3.0 | 2.0 | - | 6.0 |
HLQT30G & HLQ40G (2 Lamp Versions)
Wall Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 3.0 | 3.7 | 3.6 | 7.0 | 19.0 |
Overhead Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 3.5 | 3.3 | 2.6 | - | 8.6 |
Contact Us Today

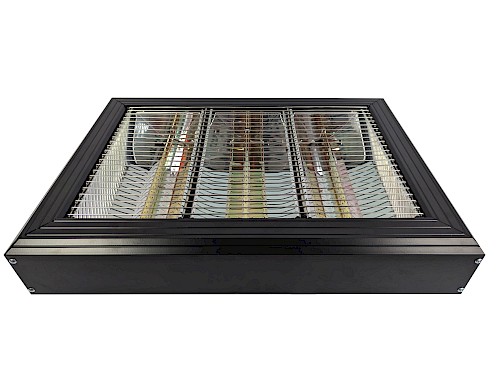

HLQT45G & HLQ60G (3 Lamp Versions)
Wall Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 3.5 | 4.0 | 4.2 | 8.1 | 25.0 |
Overhead Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 4.0 | 5.0 | 3.4 | - | 17.0 |
HLQ135G & HLQ180G (9 Lamp Versions)
Wall Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 3.5 | 12.0 | 4.8 | 22.0 | 81.0 |
Overhead Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area (m2) |
|---|---|---|---|---|
| 4.0 | 15.0 | 4.0 | - | 60.0 |
