HLC Infrared Heater
The HLC heater range, provides ceramic medium wave high energy infrared heat for internal installation. To help make the right choice, remember Short wave produces high output instant infrared heat (burning at around 2000°C) making them ideal for general zone/ space heating in commercial and industrial areas of all types and sizes. Medium wave (burning at around 700°C) takes a few minutes to reach peak heat and are more suited to smaller areas, for example, shops, veterinary surgeries, studios, security offices, sheds etc.
Product Features
Light-Free Infrared Heating
Provides efficient heating without emitting any light, making it ideal for environments where minimal visibility impact is required.
Compact and Versatile Design
Perfect for small spaces or areas with low ceilings, with wattage options as low as 150W for tailored energy usage.
Comprehensive Solutions and Support
We offer a full range of fixed and mobile infrared heaters, backed by expert technical support and design and planning advice.
With models from 1kW to 4.5kW in a range of formats, they offer the instant answer to many zone or localised heating problems. These units can be wall mounted or ceiling suspended and are available in single or three phase versions.The case is manufactured from aluminium and is painted in an ivory colour powder coated finish. Guards and wall brackets are supplied as standard with all models.
The Ceramic elements emit a high proportion of medium wave infrared heat, this output is far less intense than the short wave version, and it can therefore be used where low level or space restricted instant heat is required. Ceramic elements produce no visible light, so can also be installed in situations where the red glow from short wave systems would make them unacceptable, such as photographic studios, or where colour comparisons are used.

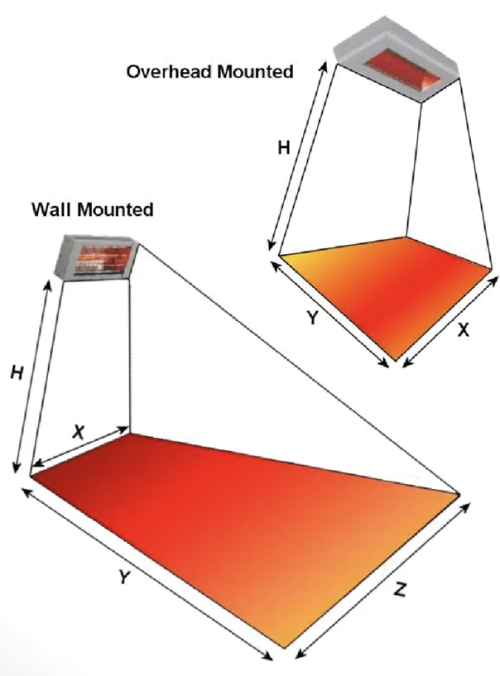

Wall Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area Covered (m2) | Wattage | |
|---|---|---|---|---|---|---|
| HLC10 | 2.5 | 3 | 2.2 | 5 | 8.8 | 1000 |
| HLC15 | 3 | 3.2 | 3 | 5.8 | 13.5 | 1500 |
| HLC20 | 2.5 | 3.2 | 2.3 | 5.3 | 9.8 | 1000 |
| HLC30 | 3 | 3.4 | 3.2 | 6 | 13.5 | 1500 |
| HLC30L | 3 | 3.5 | 3.3 | 6.2 | 16 | 1000 |
| HLC45 | 3.5 | 3.6 | 3.6 | 7 | 19.1 | 1500 |
Overhead Mounted:
| H (m) | X (m) | Y (m) | Z (m) | Area Covered (m2) | Wattage | |
|---|---|---|---|---|---|---|
| HLC10 | 3 | 3 | 3.5 | 10.5 | 10.5 | 1000 |
| HLC15 | 3.5 | 3.3 | 4 | 11.5 | 11.5 | 1500 |
| HLC20 | 3.5 | 3.3 | 4 | 11.5 | 11.5 | 1000 |
| HLC30 | 4 | 4.5 | 4.2 | 18 | 18 | 1500 |
| HLC30L | 3.5 | 3.3 | 4 | 12.2 | 12.2 | 1000 |
| HLC45 | 4.2 | 4.5 | 4.2 | 18.9 | 18.9 | 1500 |
1000w Ceramic Emitters
- HLC10 - Min 2.2m, Max 3.0m
- HLC20 - Min 2.2m, Max 3.5m
- HLC30L - Min 3.0m, Max 4.5m
1500w Ceramic Emitters
- HLC15 - Min 2.2m, Max 3.2m
- HLC30 - Min 2.2m, Max 4.0m
- HLC45 - Min 3.0M, Max 5.0m
Contact Us Today
Size Guide:
| HLC10 + HLC15 | HLC20 & HLC30 | HLC30L & HLC45 | |
|---|---|---|---|
| Length | 405 mm | 405 mm | 405 mm |
| Height | 190 mm | 345 mm | 495 mm |
| Depth | 72 mm | 72 mm | 72 mm |
| Weight | 1.75KG | 2.75KG | 3.5KG |
Heat Requirements
A simple calculation can be made regarding the total amount of heat required in any given area, by using the guidelines in the watts/m² below. Choose the nearest figure to the application of work undertaken and premises type, then multiply this by the total area in m².
This will give you an idea as to the total amount of wattage required for heating the area. The size and type of heaters can then be compared with the table below to find the most suitable models. A 10-15% overlap is recommended to ensure even coverage of the area. Due consideration should be given to the power supply required, mounting locations and safety requirements.
