VLP30 3000W Large Paint Dryer | Victory Lighting
Drying & Curing Systems

VLP30 3000W Large Paint Dryer

PDF Download

victory-brochure-large-paint-dryers_new.pdf

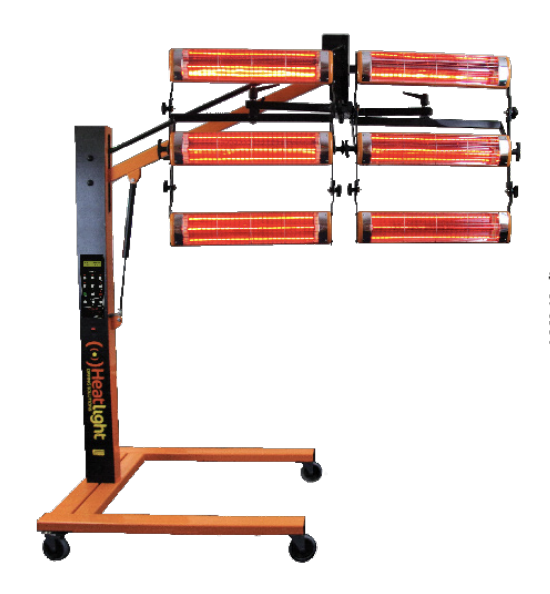

A very flexible and durable system. It can be used in multiple, positions thanks to a moveable head and adjustable cassette positions.

Victory’s Heatlight range of large paint dryers utilises 1 & 1.5kW glare control lamps, configured in individual cassettes to yield up to 6kW of drying heat. The lamps emit short wave infrared heat which is ideal for optimising drying of water-based paints. These flexible systems allow each cassette to be adjusted and locked into position around the contours of the vehicle body, ensuring maximum area coverage. There are also options for temperature/distance sensors for ultimate controllability.

Product Features

Proven Reliability

Trusted for years with thousands of successful installations, delivering consistent performance.

Premium Build Quality

Designed in the UK using high-grade steel and aluminum, ensuring durability and longevity.

Workplace Safety

Equipped with low-glare lamps for improved eye protection, paired with lockable rear wheel castors for stability and secure positioning.

Fast and Efficient

Victory Heatlight large paint dryers use short wave infrared — the most environmentally efficient form of energy for paint drying. Efficiency increases of up to 90% are made over conventional systems and drying times are cut typically from 45 to 10 minutes. Faster throughput and lower energy costs give a rapid return on investment.

Victory short wave lamps are specifically tuned for paint drying and with proper care will comfortably last 20,000 hours. The reflectors in Victory dryers have been carefully designed to maximise efficiency and evenly distribute heat over the widest possible target. A unique feature of the Victory system is that each cassette can be profiled to the curves of the target.

The Heatlight system thus delivers incredibly efficient heating with the best possible paint finish. For the ultimate flexibility and efficiency, the VLPV30 has two cassettes that can be independently rotated to achieve many different drying configurations.
