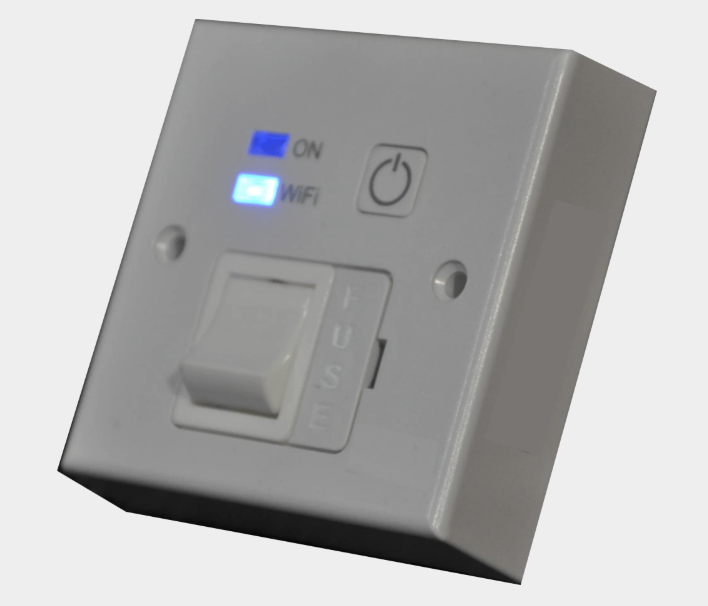

VLFS-3 Wifi Spur Timer Switch
vlfs-3__v1_2.pdf
VLFS-3 Victory's range of indoor & Outdoor WiFi Enabled Fused Spurs. WiFi enabled control for all manner of electrical applications connected to Victory's VLFS-3 13A Fused Spur Time switch.
Ideal for switching lighting and electrical heaters with a Weathershield IP66 version VLFS-3IP for outdoor uses. Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are. Total 13A 3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.
Product Features
Smart Control for Cost Savings
The VLFS-3WiFi allows you to easily cancel unwanted programmes, helping to reduce running costs and improve energy efficiency. It supports both Android and iOS devices for convenient remote control.
Versatile Operation Modes
With Auto, Permanent ON, Permanent OFF, and Holiday modes, the VLFS-3WiFi offers flexibility in managing your devices. It also includes an optional 1 and 2-hour boost for added convenience.
Durable and User-Friendly
Designed for both indoor and outdoor use, the IP66 weatherproof version ensures reliable performance in all environments. The device also features a manual override for easy control at any time.
App Features
- Available for Android & Apple IOS only
- Works with WiFi & 4g
- Can reduce running costs if unwanted programmes are cancelled
- Supports multiple devices/users
- Auto mode, with permanent ON and permanent OFF are holiday modes
- Optional 1 & 2 hour boost
- Supports additional programme sets, for half terms, holidays and seasonal programmes
- 6 ON/OFF periods, with daily repeats
- Positive ON/OFF status, with colour coded display
- Graphic representation and summary of output
- Automatic summer/winter changeover
Download the App
WiFi enabled fused spur. Get your heat lights on the Internet of Things (IoT) train using this electrical spur that can be controlled by either PC or your mobile phone. Simple to install, simple to connect, simple to operate.
Technical Ratings
The device operates at a standard voltage of 230V 50Hz and is rated for a maximum load of 13A, making it suitable for powering up to 3kW of equipment, including immersion heaters, 5A inductive loads, 1000W tungsten lighting, 500W LED systems, 100W CFLs, and 500W fluorescent lights. It features a manual override function and includes a replaceable 13 Amp BS1362 fuse for added safety. Designed for versatility, it fits into a standard 25mm deep single wall box and serves as a direct retrofit for BS1363 fused connection units. With an IP66 Weathersafe rating (VLFS-3IP), the unit is protected against harsh environmental conditions, while the double pole isolation switch ensures safe operation. The device is engineered to perform reliably within an operating temperature range of 0-40°C.
