Controls

Victory specialises in providing innovative solutions tailored for specialist heating, curing, drying, and coating needs, with a strong emphasis on improving production efficiency and reducing energy costs. By integrating advanced infrared (IR) and ultraviolet (UV) technologies, Victory helps manufacturers optimise their processes while minimising operational expenses. These solutions are designed to improve productivity, lower costs, and ensure high-quality outcomes across various industries.

Victory Lighting's infrared heaters can be used in a variety of applications and are highly versatile – even more so when used in conjunction with a controller. A controller can be used to vary heat output, or time the period of use, making the heater as environmentally friendly as possible, and saving energy cost. These low cost, compact units are easy to install and need minimum maintenance.

HLVR2 Controller

Fully adjustable from 0-100%,the HLVR2 will help ensure a comfortable temperature is always achieved whilst also saving on wasted energy and costs. It can be used in both indoor and outdoor applications and can control multiple heaters simultaneously. It is robust, user friendly, and easy to install. The HLVR2 can also be used for any devices up to 3kW total.

HLWDIM Controller

The HLWDIM incorporates a soft-start function to eliminate the lampʼs high in rush current — potentially increasing lamp life by as much as 30% and reducing the stress on the mains supply. Output levels are selected by up & down push buttons with a high intensity LED indicating when the controller is giving output to the heater.

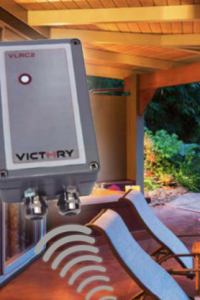

VLRC2 Controller

The VLRC2 is a remotely controlled on/off switch with a four-stages tepped dimming function operated by a small hand-held remote control fob. The HLPSS4 4kW controller provides energy saving when used with infrared heaters and also prolongs the lampsʼ life. It does this by soft-startingt he load when power is first applied to the heater(s). The microcontroller-based unit incorporates zero-voltage switching and its soft-start function eliminates lampsʼ initial high in rush current – potentially increasing lamp life by as much as 30%. It can be used with multiple heaters. The remote control has a range of 20meters (depending on local environmental conditions).

HLOPIR3 PIR Controller

The HLPSS4 4kW controller provides energy saving when used with infrared heaters and also prolongs the lampsʼ life. It does this by soft-starting the load when power is first applied to the heater(s). The micro controller-basedunit incorporates zero-voltage switching and its soft-start function eliminates lampsʼ initial high in rush current – potentially increasing lamp life by as much as 30%. It can be used with multiple heaters.

VLFS-3WiFi Fused Spur

Ideal for switching lighting and electrical heaters with a weather safe IP66 version VLFS-3IP for outdoor uses. Programme settings are all activated via your mobile device, giving you access to control your installation at any time, no matter where you are. Total 13A3kW control with confirmation of settings and switching status of the connected appliance via the on-screen app.

VLTIM4 Outdoor Timer

This high quality, attractive timer switch can be used for timed operation of infrared heaters and other appliances in outdoor environments. It is Ideal for use in smoking areas, outdoor seating, gardens and patios. Featuring a backlit blue neon indicator ring to aid location in the dark, these intelligent units have the ability to latch back on to the mains power supply and reset in the event of a power cut.

HLOTIM3 Timer

The soft start feature of the HLOTIM3 helps to prolong the life of infrared lamps and reduces stress on the mains supply. Users can instantly switch on heaters, and the electronic timer will switch off the equipment after a pre-set delay. A single controller can control up to four 1.5kW, three 2kW, or one 6kW heater(s). It can easily be retrofitted to existing equipment. The switch is tamper proof to prevent abuse and cannot be re-activated until the timer has turned off.

VLPTD Timer

The VLPTD is a 0-99 minute digital countdown timer with built-instart/stop. Time is set by two buttons in steps of 1 or 10 minutes. The VLPTD is primarily for use with Victory small paint dryers and is mounted onto the HLPS paint dryer stand. It is supplied with a 3m supply cable and fitted with a 13AUK plug. The VLPTD-Eversion is fitted with 16AEU plug.
